feed pellet mill
Feed pellet machine – Various Models – Minimum 1 Ton/Hour
SZLH series feed pellet machines range from the 250 model to the 768 model. Different sizes of conditioner and different motor powers result in different classifications of pellet machines with varying capacity. However, note that the capacity of our smallest SZLH250 model feed pellet machine is 1-2 tons per hour, which is the rated output in a complete animal feed production line. Our equipment is not recommended for independent operation, and individuals also cannot use it. We suggest you first understand the complete feed mill process and equipment configuration, as we only provide solutions and equipment configurations for commercial projects.
Versatile Pellet Sizing
Food-Grade Construction
Intelligent Feeding
Anti-Clogging Design
Advanced Conditioning & Sanitization
High-Efficiency Gear Drive
Suitable for Different investment Goals
Whether it’s a simple feed formula or the construction of a professional feed mill, we provide you with efficient and reasonable production plans and feed pellet production configurations.
●Southeast Asia
Regional Feed Processing Plant
Regional feed mills require flexible product ranges, but are often limited by building height. RICHI offers Z-type bucket elevators, eliminating the need for excavation and adapting to site conditions. Multiple configuration options are also available to help customers flexibly adjust and optimize production.
- Customer output : 3-10 t/h
- Application : Poultry & livestock feed
●North America
Raw Material Deep Processing Enterprise
Many by-products like distillers’ grains, oil cakes and bran are generated from grain, oil and agricultural production, which boast great market potential when processed into pellet feed. RICHI pellet mills feature wide material adaptability and reliable performance, enabling efficient recycling of agricultural residues.
- Customer output : 4-15 t/h
- Application : Agricultural by-product pellet feed
●Global

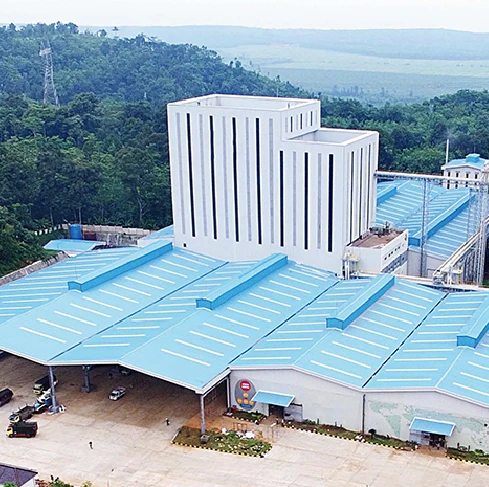

Integrated Livestock Farm
Large livestock farms build in-house feed mills to cut breeding costs. This on-site production model is spreading rapidly from developed economies to emerging markets and has become an industry trend. RICHI offers a complete production line from raw material handling to packaging to fully meet customer needs.
- Customer output : 5-20 t/h
- Application : Swine & cattle feed
●Global
Feed research and testing institutions
Feed formulation development, feed evaluation and livestock feeding tests require flexible small-batch pellet production. RICHI medium and small pellet mills feature a compact footprint, with precise control over temperature, pellet density and output speed, enabling rapid trial production of various test feed pellets.
- Customer output : 1-2 t/h
- Application : Experimental formula feed & research feed
Configuration to Meet Different Goals
RICHI feed pellet machine can produce pellet feed for chickens, pigs, cows, and other livestock. Note: The production of pellet feed for different animals depends solely on your raw material formula and target pellet size. That is to say, the same set of feed mill equipment configuration can meet different goals; you just need to switch the formula and the pellet machine ring die size.
Poultry Feed Pellet Mill
With robust feedstock processing capability and flexible custom-engineered design, our mills efficiently produce premium pellets or mash feed in multiple sizes. The finished feed enhances palatability, eliminates selective feeding behavior, and increases nutrient digestibility and absorption in poultry.
Ruminant Feed Pellet Mill
Ruminants demand specific feed hardness, fiber content, and nutritional composition. To meet these requirements, our machines integrate forced feeders and conditioners. Even lightweight materials like grass meal can be stably processed into high-quality pellets.
Livestock Feed Pellet Mill
Designed for the omnivorous nature and stage-specific nutritional needs, our pellet mills allow flexible adjustment of pellet diameter and hardness. They process a wide range of feedstocks including grains, meat and vegetable residues, promoting voluntary feed intake and healthy weight gain.
Grass pellet Pellet Mill
Hay has high fiber content and low bulk density, making it prone to clogging. Our pellet mill is equipped with an arch-breaking feeder and a forced feeder, along with a high-torque motor, which can stably compress forage pellets. An optional conditioner can also be used to soften the fibers.
Feed pellet mills Production line solution
The entire process is controlled by PLC, which is precise and efficient, enabling one-step production from powder to high-quality granules.

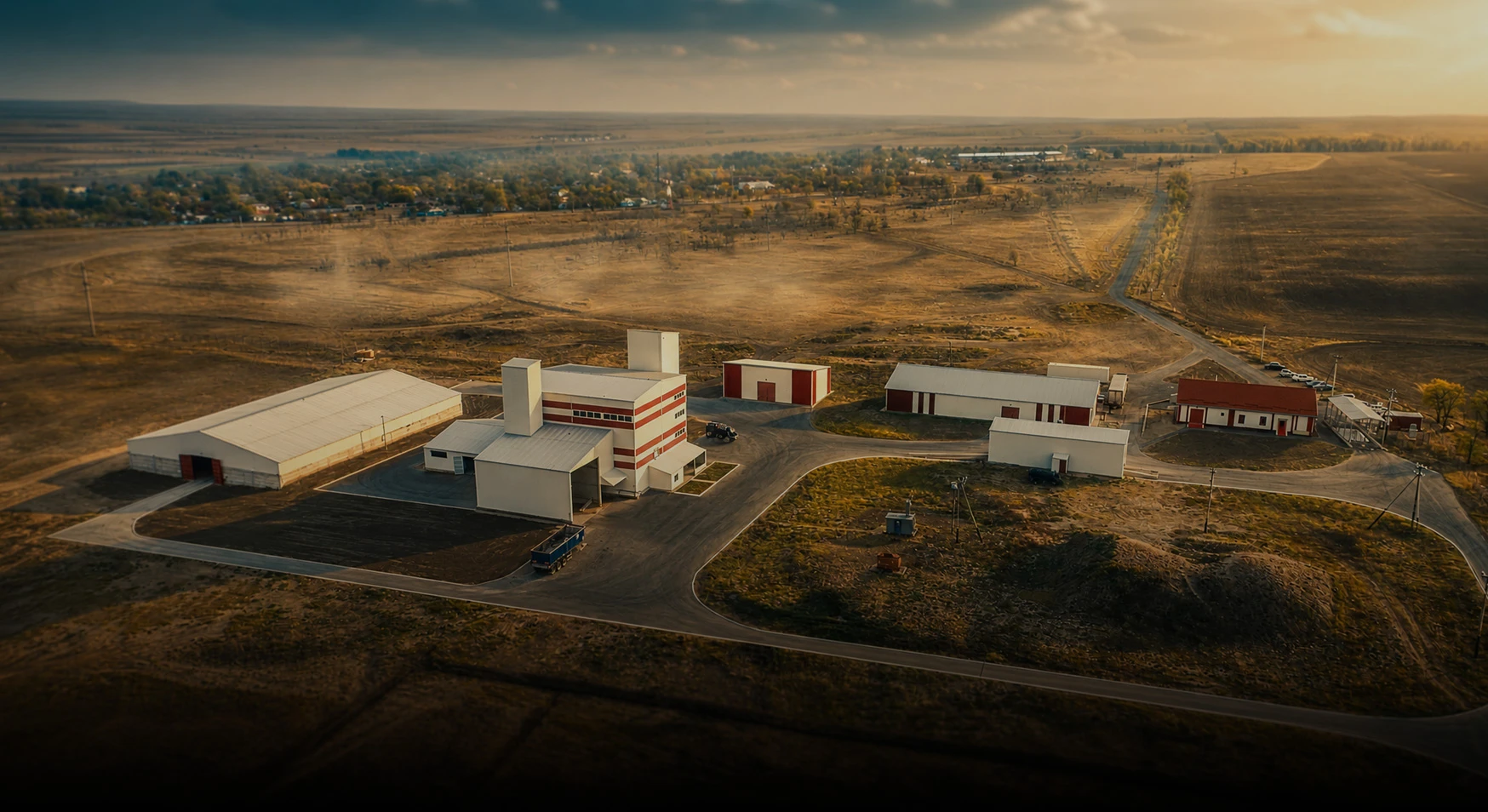

Poultry Feed Pellet Production Line
Our standard poultry feed pellet line comes with a steam conditioner—this bad boy cranks up starch gelatinization and kills germs like a pro! From grinding, batching, and mixing to pelleting, cooling, screening, and packaging, it covers every step of the process. The end result? Tasty, nutritionally balanced complete pellet feed！
Pellet Machine : SZLH Series
Ingredients : Corn, premix

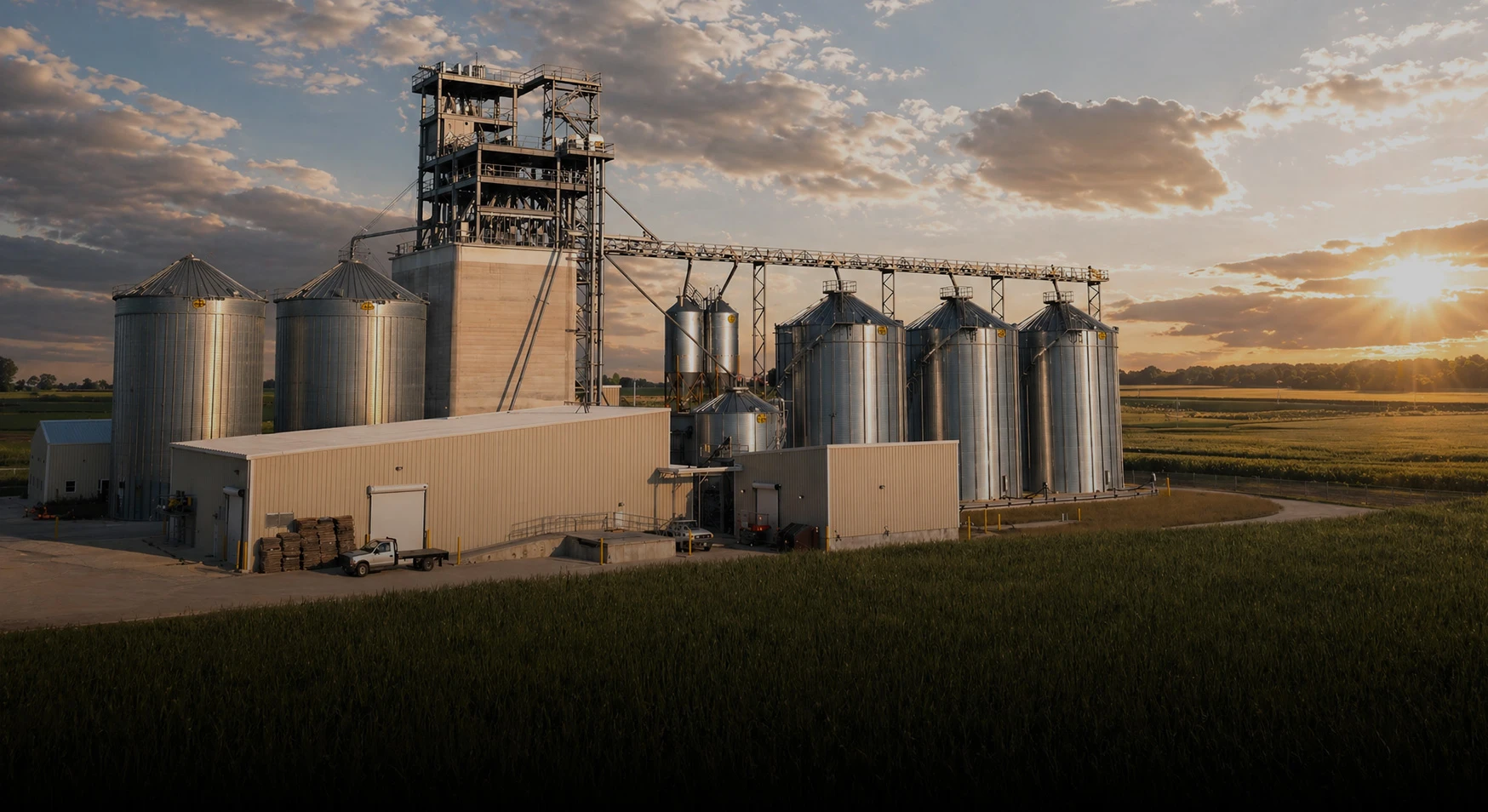

Livestock Feed Pellet Production Line

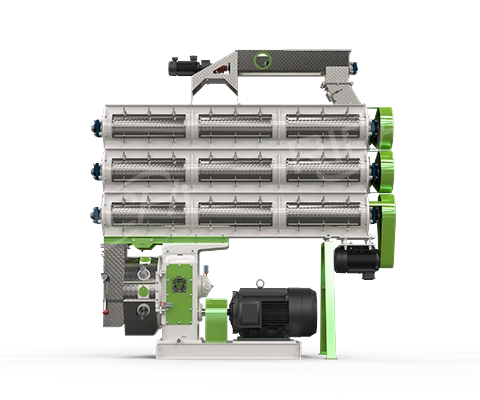

This production line is equipped with a multi-layer conditioner. Saturated steam is introduced to fully cook materials, effectively improving feed digestibility and achieving sterilization. The ring die compression ratio is adjustable according to livestock species and growth stages. We recommend a ratio of 1:6 to 8 for medium and large pig feed, and around 1:5 for piglet feed.
Pellet Machine : SZLH Series
Ingredients : Soybean meal

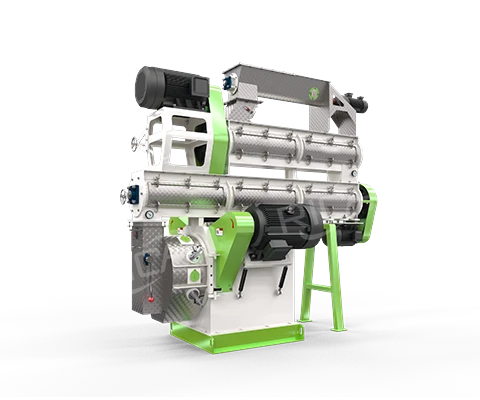

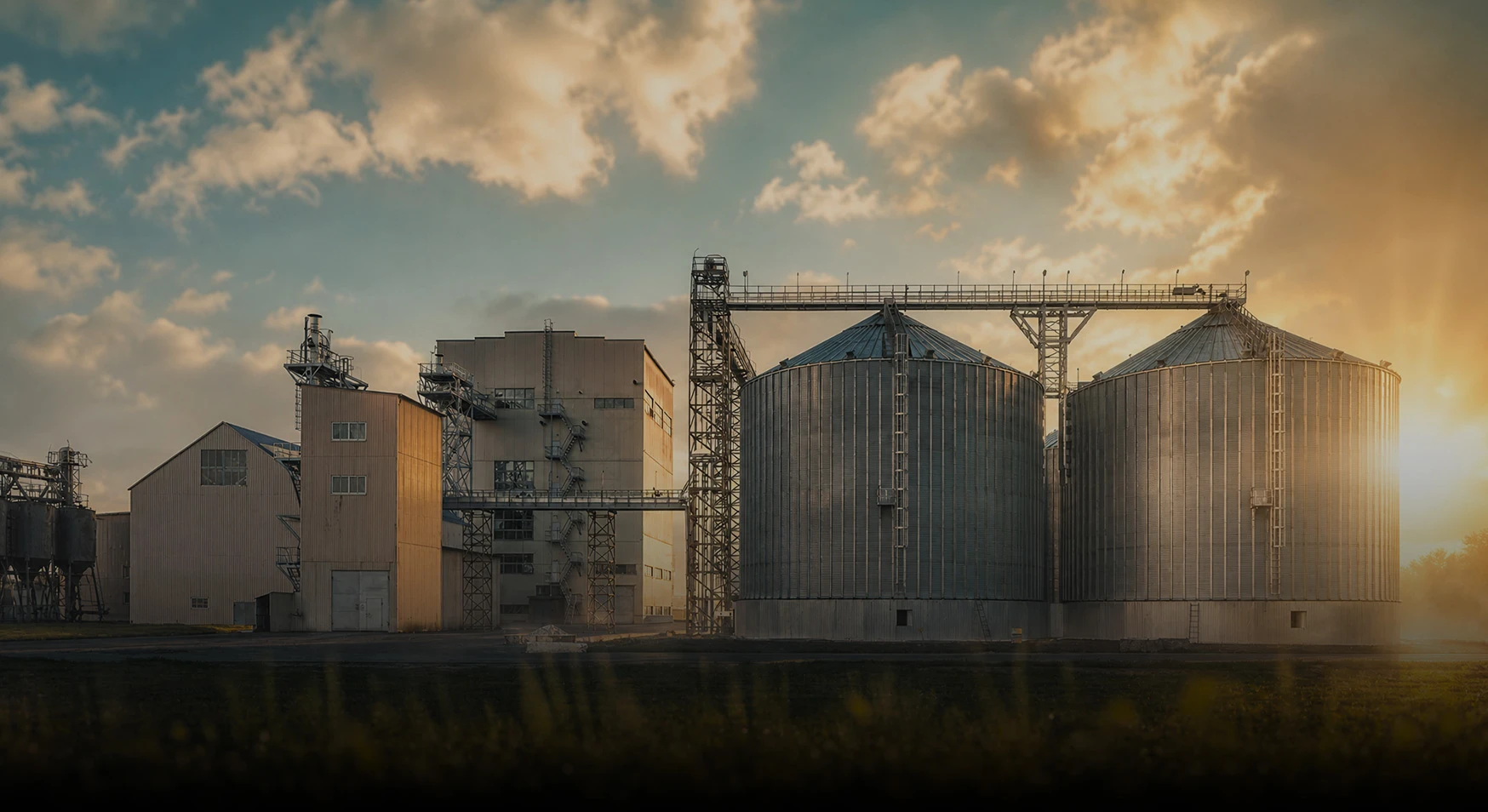

Ruminant Feed Pellet Production Line
This production line is designed for the high proportion of hay powder in raw materials. It adopts a ribbon mixer and a hay pulverizer, and is equipped with an arch-breaking feeder to ensure that materials with large differences in specific gravity can be mixed and pelleted evenly. It is suitable for the production of complete pelleted feeds that are a mixture of hay and grain.
Pellet Machine : MZLH&CZLH
Ingredients : Straw, alfalfa

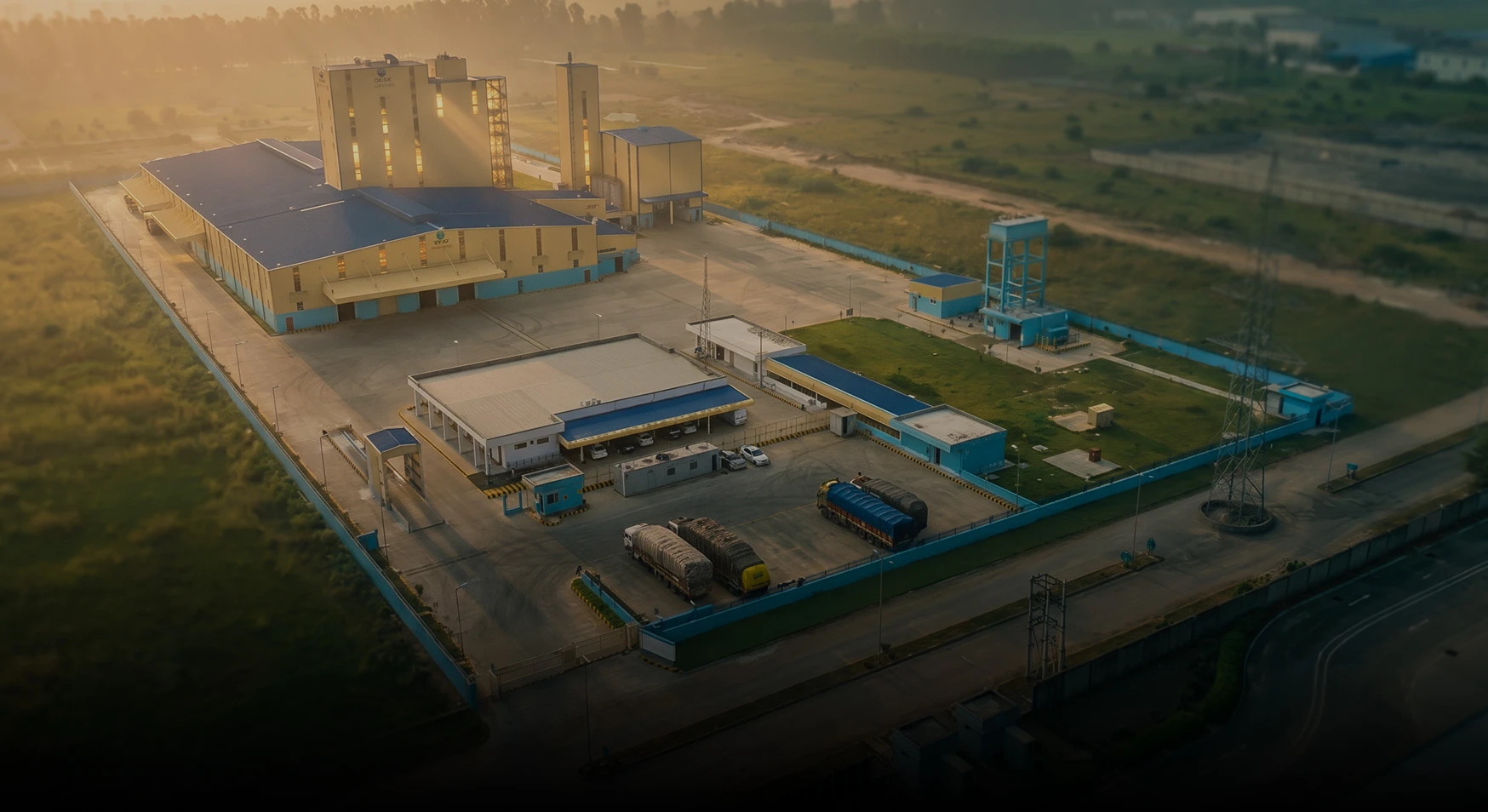

Hay Pellet Production Line
This production line uses a special hay crusher, equipped with a forced feeding mechanism and a pneumatic conveying system. It can efficiently process loose, bundled or lumpy hay, and is especially suitable for processing lightweight, high-fiber, and high-moisture grasses. It is applicable to ruminant animal breeding and biomass energy fields.
Pellet Machine : CZLH Series
Ingredients : Grasses
About RICHI Machinery
Based in China and serving global markets, RICHI Machinery is a global manufacturer and engineering service provider specializing in pellet production equipment and complete processing systems. From feed, biomass, and organic fertilizer to cat litter and agricultural waste recycling, we help customers build efficient, reliable, and scalable production solutions tailored to their raw materials, capacity requirements, and market goals. With projects delivered across multiple industries and countries, our focus is always on practical performance, long-term operation, and customer success.
Advanced Engineering & Intelligent Manufacturing
Driven by technology and manufacturing expertise, RICHI integrates process engineering, equipment R&D, intelligent manufacturing, and project delivery into one complete service system. Our modern production facilities, precision machining capabilities, and experienced technical team allow us to provide customized equipment, complete plant design, automation integration, installation guidance, and ongoing technical support. From single machines to fully integrated production lines, we deliver solutions designed for stability, efficiency, and sustainable production growth.
Frequently Asked Questions
The following is a summary of common questions regarding feed pellet machine for sale, feed mill configuration, equipment installation, after-sales service, pricing, and complete factory setup, to help you quickly understand RICHI products.

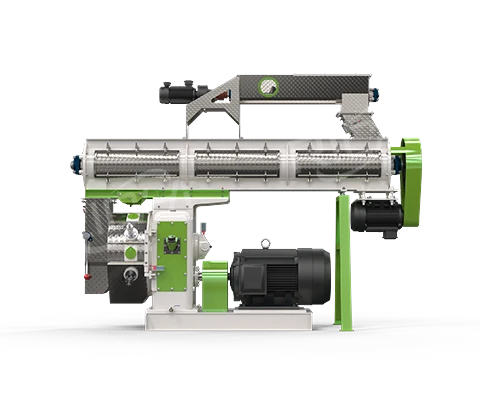

What role does the conditioner play in the feed production process?
Starched raw materials; matured raw materials; high-temperature sterilization to ensure food safety; meet the granulation requirements of raw materials; not only meet the basic needs of granule production but also greatly improve the efficiency of granule production and protect the working environment of the granule machine’s ring mold and roller.
I have a small poultry farm. How can I buy a feed pellet machine?
Due to various reasons, the price of finished animal feed has always been subject to great market fluctuations. Therefore, many customers inquire and want to buy a feed pellet machine to produce it themselves, in order to reduce their feed purchase costs. But we suggest that you first understand the process of animal feed pellet production and what equipment is required. This is a professional and complex industry, and you cannot just buy a machine and produce it at home. And we only provide solutions and equipment configurations for commercial projects. For individuals and those who raise only a few animals, we recommend that you directly search for household flat die pellet machine, we do not produce such small products.
Can pellet size be adjusted?
Yes. Pellet size is flexibly adjustable between 1–12 mm by changing ring die holes and adjusting the cutter position.Recommended sizes: Calf: 5–6 mm, Finishing cattle: 6–7 mm, Dairy cow: 6–8 mm, Young chicks: 1.5 mm or meal, Grower chicks: 2.5–3.0 mm, Broilers: 3.5–4 mm, Duck/Goose: 3–5 mm.
What are the core components? How is quality ensured?
Key components feature Siemens motors and SKF bearings. All product-contact parts, including feeder, conditioner, and ring die, are 304 stainless steel. The ring die undergoes vacuum heat treatment; rollers are made of 42CrMo alloy steel. The control cabinet supports independent operation, enabling isolated shutdown for maintenance without disrupting the full line.
What equipment is included in a feed production line?
A typical line consists of mixer, pellet mill, cooler, screener, and packaging system: Mixer. Ensures uniform blending of raw materials. Pellet mill: Compresses mixed feed into dense pellets. Cooler: Reduces pellet temperature for durability. Screener: Removes fines and grades pellets by size. Packaging system: Weighs and packages finished pellets for distribution. Together, these units produce high-quality feed.
What is the minimum requirement to start a commercial animal feed production project with RICHI?
We only focus on large-scale farming animal feed projects and commercial feed production projects. If you are looking for a small machine to produce your own animal feed at home, we are not the right choice – we would rather tell you upfront to save your time.Our configuration include small-scale equipment for crushing, mixing, granulating, etc. If you are unsure of your specific requirements, just send us your basic requirements. We will give you a direct response.
